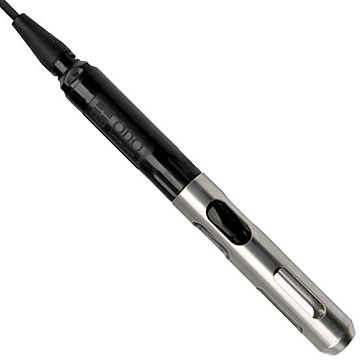

YSI ODO/T Probe and Cable Assembly

The YSI ODO/T probe and cable assembly pairs with the ProSolo handheld to form a complete sampling system. Featuring integral, digital sensors, the ODO/T is plug-and-play, which minimizes time spent on instrument setup. Pro DIGITAL technology allows the handheld to automatically recognize connected sensors.

Optical dissolved oxygen (ODO) technology is non-consumptive, meaning oxygen is not consumed during the measurement. Flow dependence is non-existent and no stirring is required, resulting in the most accurate DO measurements available from a probe. The ODO sensor is not susceptible to interferences from other gases, drifts less, and holds calibration longer than membrane-covered sensors. A simple, threaded optical cap contributes to ease of maintenance.

Features

• Dissolved Oxygen (% saturation)
  • Range: 0 to 500%
  • Accuracy at 0 to 200%: ±1% of reading

    or 1% saturation, whichever is greater
  • Accuracy at 200 to 500%: ±8% of reading
• Dissolved Oxygen (mg/L)
  • Range: 0 to 50 mg/L
  • Accuracy of 0 to 20 mg/L:

    ±0.1 mg/L or 1% of reading, whichever is greater
  • Accuracy of 20 to 50 mg/L: ±8% of reading
• DO Resolution
  • 0.01 mg/L and 0.1%, or 0.1 mg/L and 1%

    (auto-adjusts based on range)
• Temperature
  • Range: -5 to 70°C
  • Accuracy: ±0.2°C
  • Resolution: 0.1°C or 0.1°F
• Rugged optical DO sensor cap pre-installed on new assemblies
• Military spec (MS) connector and a weighted, stainless steel probe guard
• Fits in a 1-inch well with cable lengths up to 100 meters
• 2-year warranty on cable, sensors, and ODO cap
