Wilcoxon Sensing Technologies HT786A Accelerometer

product id: 7bc9cf811d6d

Categories: Accelerometers, Inertial Sensors

Manufacturer: Wilcoxon Sensing Technologies

InstruHub is a leading supplier and reseller of Wilcoxon Sensing Technologies Accelerometers, Environmental Monitoring Systems and Inertial Sensors in Qatar, and we ship to all major cities such as Doha, Dukhan, Mesaieed (Umm Said)

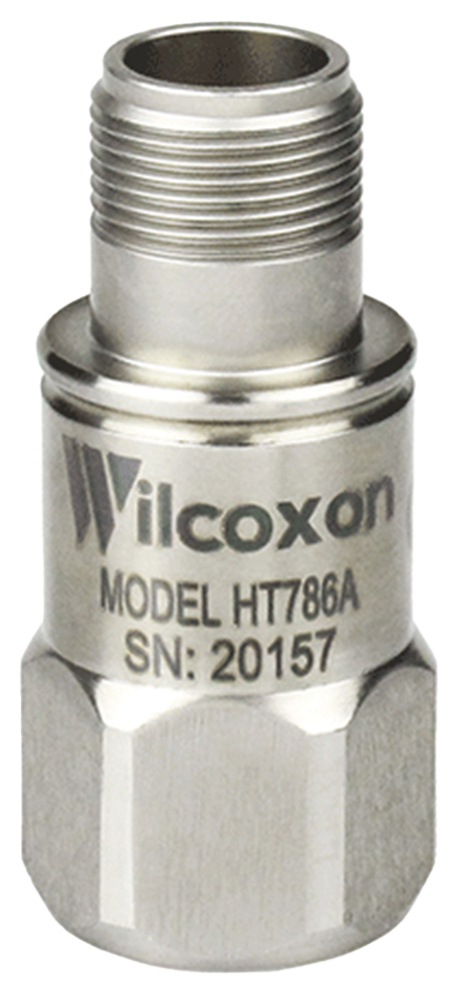

The Wilcoxon Sensing Technologies HT786A accelerometer is a high temperature rated sensor that is built with extended range components for long-lasting operation. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The HT786A is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.

The HT786A is API 670 compliant and is manufactured in ISO 9001 facility.

Features

80g peak acceleration range
500g peak vibration limit
5,000g peak shock limit
Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
30kHz resonance frequency
100Ω max output impedance
PZT shear sensing element
Hermetic sealing
MIL-C-5015 connector

Why Buy from Instruhub:

Supplier of Wilcoxon Sensing Technologies HT786A Accelerometer in Qatar
Best online prices for Wilcoxon Sensing Technologies HT786A Accelerometer
Wide range of Wilcoxon Sensing Technologies products available in Doha, Dukhan, Mesaieed (Umm Said)
Shipping at door with custom and duty included in price quote. 
Instrument repair and calibration services provided. 
InstruHub also provides DG Cargo service with as goods with Lithium Ion Batteries.
