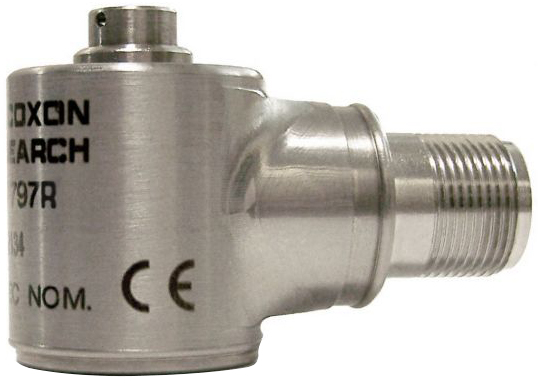

Wilcoxon Sensing Technologies 797R Radiation-Resistant Accelerometer

The Wilcoxon Sensing Technologies 797R radiation-resistant accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062″ diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector and a R6 type mating connector. The 797R is case isolated, and has 100mV/g sensitivity and ±5% sensitivity tolerance.

The 797R accelerometer is manufactured in an ISO 9001 facility and is suitable for condition monitoring in nuclear facilities.

Features

• Dynamic vibration (IEPE) sensor output
• ESD, overload, and reverse wiring protection
• 50g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 2 to 7,000Hz
  • ±3 dB: 1 to 15,000Hz
• 26kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• 1×10-7 RADs radiation exposure limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• MIL-C-5015 2-pin output connector
• R6 type mating connector
