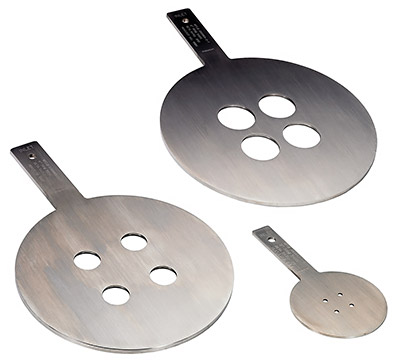

Rosemount 1595 Conditioning Orifice Plate

The Rosemount 1595 Conditioning Orifice Plate technology provides unprecedented performance with minimal straight-run piping. Orifice metering is now more flexible and better than ever before.

Rosemount Conditioning Orifice Flowmeters are designed for ease of installation and maximum performance by eliminating the need for impulse lines, special flanges or piping modifications. Self-centering mechanisms ensure optimal accuracy while improving the overall installation process.

Features

• Reduces pipe straight-run
• Direct-mount capability
• Operating temp: -320 to 1200°F (-196 to 649°C)
• Flange rating per ANSI B16.5 and DIN EN 1092-1
• 2 to 24″ (50 to 600 mm)
• Paddle or universal square-edge type orifice
