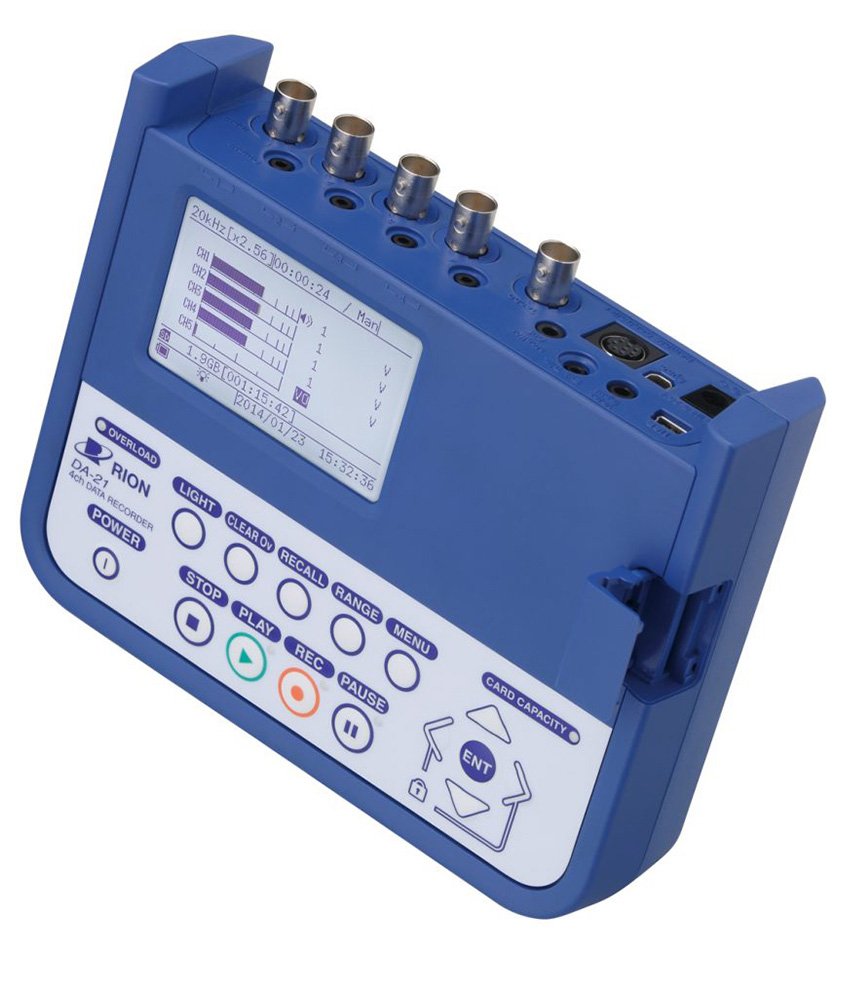

Rion DA-21 Data Recorder

The Rion DA-21 Data Recorder supports the playback of recorded data. The recorder operates silently without any moving parts, and is also able to operate in difficult environments subject to vibration and humidity. A voice memo recording function is included. Visual level indication is provided via a bar graph display. Data recorded by the DA-21 can be displayed and analyzed using the AS-70 Waveform Analysis Software.

Features

• Use as USB storage supported (recognized as removable disk)
• Inter-unit synchronization (max. 8 channels)
• Time trigger function added
• Quantization – 24 bit also supported
• Additional rotary signal input (dedicated connector)
• Separate input and playback output connectors
• Battery life:
  • 8 hours using four IEC R6 (size AA) alkaline batteries (20kHz, 4ch, CCLD OFF)
  • 30 hours (depending on recording settings) using battery pack BP-21A with four IEC R20 (size D) alkaline batteries
• Supplied with AS-70 Waveform Analysis Software
