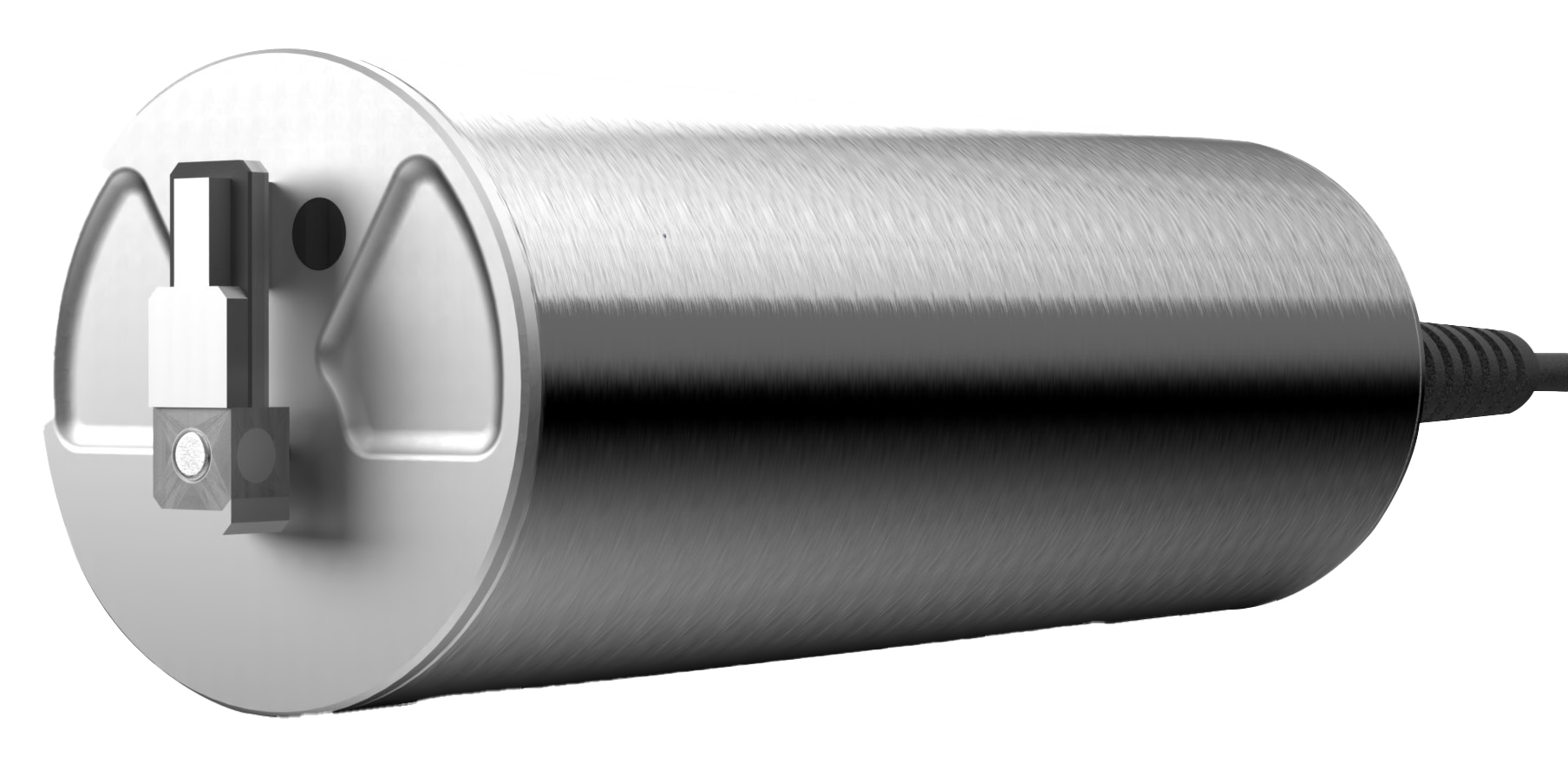

Pyxis LT-63X Series Self-Wiping & Submersible Turbidity Sensors

The Pyxis LT-63X Series Self-Wiping & Submersible Turbidity Sensors are submersible, waterproof, self-cleaning sensors that utilize dual wavelength detection technology to measure turbidity in the ranges of 0 to 4000 NTU. The sensor automatically compensates for disturbances caused by flow fluctuations, climate change, color change or changes in turbidity. The instrument design is virtually maintenance-free, and the self-cleaning capability of the sensor prevents deviations caused by air bubbles and suspended solids particulate.

Features

• 0.5NTU lower detection limit
• 0.1NTU resolution
• 32–122ºF operating temperature
• 45psi (3.5Bar) operational pressure
• Precision: <100: ±2NTU or 2% of the value, >100: ±10% of the reading
• Accuracy: ±2NTU or 3% of the value
• T95<12 seconds response time
• Isolated 4-20mA analog output & isolated RS-485 Modbus digital output
• IP-68 fully dustproof & waterproof
• Measurement ranges:
  • LT-631=0.00–500.00NTU
  • LT-632= 0.00–1,000.00NTU
  • LT-633= 0.00–4,000.00NTU
