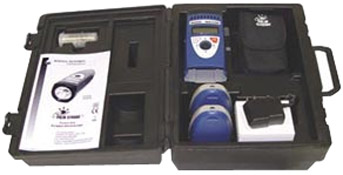

The Monarch Palm Strobe X stroboscope is the new industrial standard for high intensity, multi-function compact Xenon stroboscopes. Featuring excellent brightness, exceptional features, and extra long battery life, the Monarch Instrument Palm Strobe X stroboscope has a unique one-touch joystick-type button that allows single hand operation for fast fractional RPM tuning.
The Palm Strobe X features modes for internal tuning, external TTL input, and tachometer display. Eight memory positions provide rapid recall of user defined frequencies. With internal tuning mode it has a flash range of 100 to 12,500 flashes per minute (FPM) with an accuracy of ±0.5 FPM (or ±0.01% of reading) and a resolution of ±0.1 FPM. Using external sensors it’s flash range is 0 to 14,000 FPM with an accuracy of ±0.2 FPM. External input is 0-5VDC and TTL compatible. The tachometer mode to allows measurements from 5 to 250,000 RPM with an accuracy of ± 0.01% or 0.1 RPM.
This stroboscope can be used alone or with external sensors. When used in conjunction with the SPSR sensor interface module it is compatible with ROS-P, IRS-P, and MT-190P sensors. Sensors must have phone plug connections.
