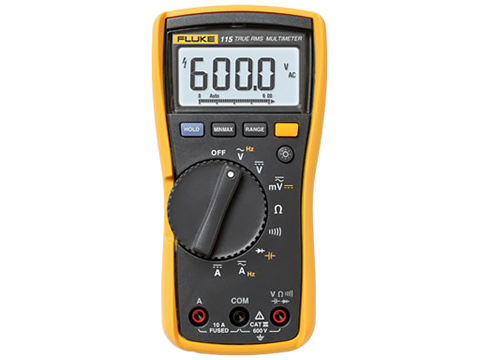

Fluke 115 Multimeter

The Fluke 115 field service technician’s multimeter is the solution for a wide variety of electrical and electronic testing applications. This True RMS meter provides easy, one-handed operation in a compact package. The Fluke 115 can measure AC/DC voltage, AC/DC amps, ohms, resistance, continuity, frequency, and capacitance as well as test diodes.

Other features of the Fluke 115 field service technician’s multimeter include a 10A rating, with the ability to handle a 20A overload for 30 seconds. The large, white LED backlight improves visibility in poorly lit areas. Fluke 115 multimeters offer a compact, ergonomic design and calculates the min/max/average with elapsed time to record signal fluctuations.

The Fluke 115 field service technician’s multimeter is CAT III 600 V safety rated and compatible with the optional magnetic holder (ToolPak™). Accuracies are specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. The Fluke 115 comes with Fluke TL75 test leads, holster, user’s manual and 9V battery (installed).

Features

• AC/DC millivolts
  • Range: 600.0mV
  • DC accuracy: 0.5% + 2
  • AC accuracy: 1.0% + 3 (45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
• AC/DC Volts
  • Ranges: 6.000V; 60.00V; 600.0V
  • DC accuracy: 0.5% + 2
  • AC accuracy: 1.0% + 3 (45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
• Auto Volts
  • Range: 600.0V
  • Accuracy: 2.0% + 3 (dc, 45 Hz to 500 Hz); 4.0% + 3 (500 Hz to 1 kHz)
• DC Amps
  • Ranges: 6.000A, 10.00A, 20A overload
  • Accuracy: 1.0% + 3
• Capacitance
  • Ranges: 1000nF, 10.0μF, 100.0μF, 9999μF
  • Accuracy: <1000μF: 1.9% + 2; >1000μF: 5% + 20
• Diode Test
  • Range: 2.000V
  • Accuracy: 0.9% + 2
