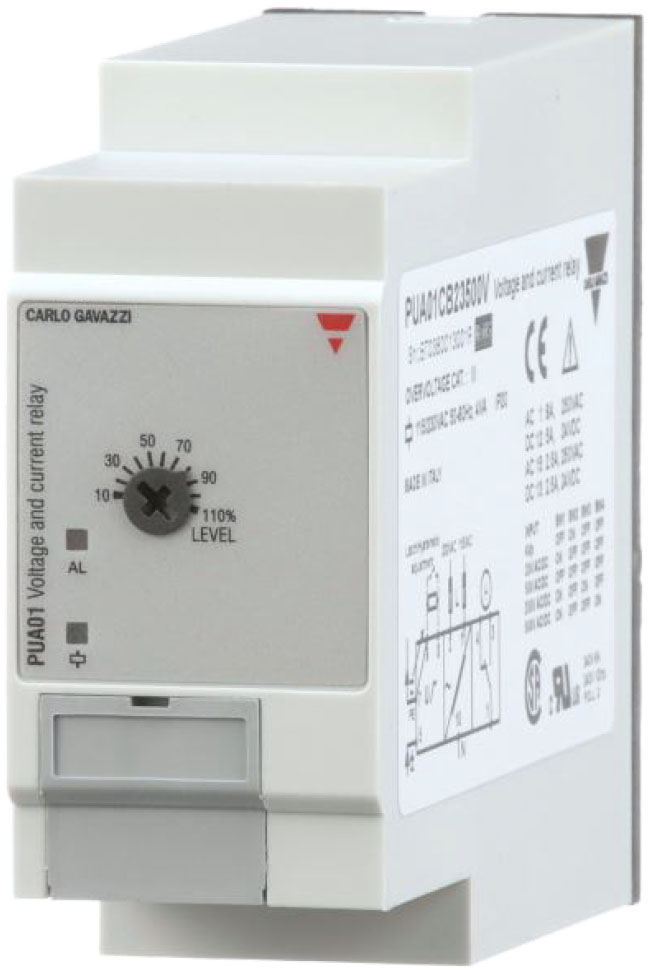

Carlo Gavazzi DUA01 / PUA01 Monitoring Relay

The Carlo Gavazzi DUA01 / PUA01 monitoring relay’s are precise AC/DC over voltage monitoring relays. They can also be used as 1-phase or 3-phase over current monitoring relays when connected with MI or MP current transformers. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

Features

• AC/DC over voltage monitoring relay
• Selection of measuring range by DIP-switches
• Adjustable voltage limit on relative scale
• Mounting options:
  • DUA01: DIN-rail
  • PUA01: Plug-in module
• Adjustable hysteresis
• Programmable latching at set level
• Output: 8 A SPDT relay normally de-energized
• Measuring ranges:
  • 2 to 20 VAC/DC
  • 5 to 50 VAC/DC
  • 20 to 200 VAC/DC
  • 50 to 500 VAC/DC
  • 0.4 to 4 Vp AC
